名稱 Production |
規格 Specification |
數量 Quantity |
功率 Power |
單價 Unit price |
總價 Total price |
備注 Remark |
|
振動給料機 |
3800*1000 |
1 |
|
|
|
|
|
細顎破 Jaw broken |
300*1300 |
1 |
|
|
|
|
|
細顎破底座支架Jaw broken base bracket |
|
1 |
|
|
|
含料斗 Contain the hopper |
|
反擊式制沙機 Counterattack Shredde |
1000*1600 110KW |
2 |
|
|
|
1用1備 One in common use and one in spare |
|
制沙機底座支架Base bracket of sand making machine |
|
1 |
|
|
|
含料斗 Contain the hopper |
|

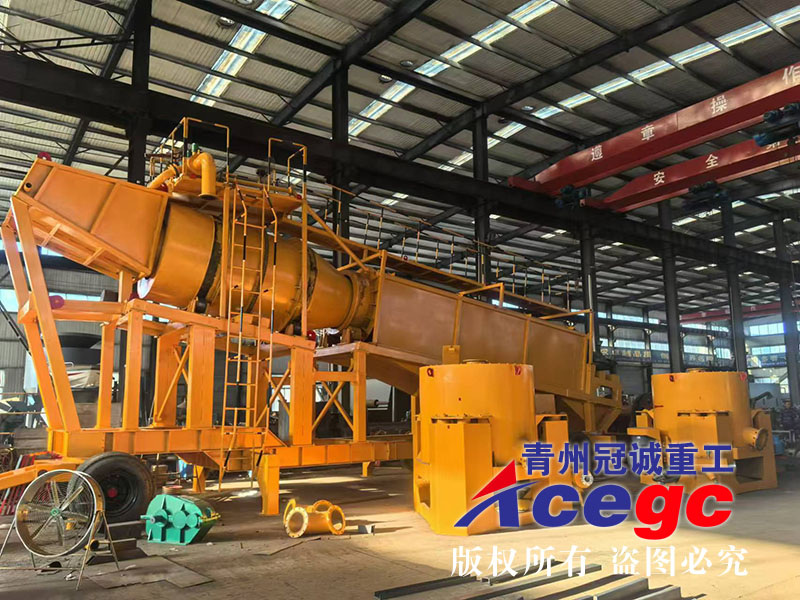

滾筒篩 Trommel screen |
1.滾筒篩雙層結構，內徑1.3米，外徑1.6米，凈篩網長度3米； 2.滾筒篩內層篩網采用?22mm油田耐磨提油桿制作，5*10CM編孔；外層?22mm油田耐磨提油桿制作； 3.供水系統：采用中央+側沖水方式。 4.滾筒篩托輪：8.25-15實心工程輪胎*2條 5.減速機：JZQ-400 6.電動機：15KW 1. Double layer structure of roller screen, inner diameter 1.3 meters, outer diameter 1.6 meters, net mesh length 3 meters; 2. The inner screen of the roller screen is made of ? 22mm wear-resisting oil-lifting rod in oil field, with 5*10CM woven holes;Outer ? 22mm oil field wear-resistant rod production; 3. Water supply system: central + side flushing. 4. Roller screen supporting wheel: 8.25-15 solid engineering tire *2 pieces 5. Reducer: JZQ-400 6. Motor: 15KW |
1 |
|
|
|
含底座支架、料斗 Including base bracket and hopper |
|
離心機 centrifuge |
臥式全自動排礦1200# PLC電腦全自動控制 電機：18.5KW-8 空氣壓縮機：3KW*1臺 Horizontal automatic ore discharge 1200# PLC computer automatic control Motor: 18.5 KW - 8 Air compressor: 3KW*1 set |
2 |
|
|
|
單臺重量約8噸 Each unit weighs about 8 tons |
|
懸振式貴金屬重力洗選富集機 Suspension type heavy metal washing and concentration machine |
規格：B1600X5000 機架：100X100方管 床面主架：20#槽鋼 皮帶寬度：1600mm 電機：雙級擺線針4KW*1臺 傳動方式：鏈輪傳動 激振器：0.37KW*1臺 首級重砂分離器*3臺 分水器*1臺（含過濾、手輪旋轉式濾網清潔刷） |
2 |
|
|
|
|
|
富集機排料溜槽 Enrichment machine feeding and discharging chute |
|
1 |
|
|
|
|
|
球磨機 Ball grinder |
2100*4500 電機 motor： 8-245kw-380v 減速機Reduction box ：ZD60（鑄鋼機殼Cast steel casing） 小齒輪pinion ：材質鍛鋼 45# 高頻淬火 Material forged steel 45# high frequency quenching 大齒輪 Rack wheel：材質:WCB鑄鋼 45# 寬度width300mm 端蓋End cove ：材質鑄鋼 Material cast steel 35# 厚度Thickness≥60mm 筒體厚度Thickness of tube processing ：20mm 高錳鋼襯板High Manganese Steel Liner ：1 Set 材質Texture Mn10-13 厚度Thickness 40mm-60mm 整體鋼底架Integral steel underframe ：免按裝調試型 1 套1 set of no-press debugging type； 400 槽鋼 400 channel steel 整體齒輪座Integral gear seat ：高強度穩定型 1 件 High strength stable type 1 piece 啟動控制柜QZD ：1 件Set 密封齒輪罩Sealed gear housing ：1 套SET
|
1 |
|
|
|
|
|
螺旋分級機 spiral classifier |
2100*11500 槽體厚度The thickness of the tub： 8mm； 主軸 426x25mm 無縫鋼管；Spindle 426x25mm seamless steel tube 主軸支架Main shaft support： 12mm； 大葉片Eucalyptus robusta slice: 8mm； 小葉片耐磨鑄鐵 Small blade wear resistant cast iron 主減速機Main gearbox: ZL65； 主 電機Main motor: Y-6-22kw； 提升電機Lifting motor: 4kw 提升減速機Hoist reducer: WXJ180 |
1 |
|
|
|
|
|
輸送機 Conveyor |
B800*9m |
1 |
|
|
|
含桿支架 Including pole bracket |
|
輸送機 Conveyor |
B800*12.5m |
1 |
|
|
|
含桿支架 Including pole bracket |
|
輸送機 Conveyor |
B800*10m |
1 |
|
|
|
含桿支架 Including pole bracket |
|
輸送機 Conveyor |
B600*13.5m |
1 |
|
|
|
含桿支架 Including pole bracket |
|
輸送機 Conveyor |
B800*7m |
1 |
|
|
|
含桿支架 Including pole bracket |
|
輸送機 Conveyor |
B800*3m |
1 |
|
|
|
|
|
離心水泵 centrifugal water pump |
22KW |
4 |
|
|
|
兩用兩備 |
|
沙泵&料箱 Sand pump & material box |
7寸沙泵+30KW電機+泵箱 |
2 |
|
|
|
含至離心機供料橡膠鋼絲管道 Containing rubber wire pipe to centrifuge feed |
|
控制柜 control cabinet |
開關品牌：德力西或正泰 Switch brand: Delixi or Chint |
1 |
|
|
|
降壓?jiǎn)?dòng) 不含線纜 · reduction voltage starting Does not contain cable |
|
總功率Total power |
約650KW |
|||||
|
出廠價格Ex-factory price |
稅前Pre-tax￥：15053659999來電索要元（不含稅與運費，含稅+13%Excluding tax and shipping, plus 13% including tax） |
|||||
注：本套設備到達現場組裝完成，接好水電即可使用。
Note: this set of equipment is assembled on site and can be used after receiving water and electricity.
|
名稱 Production |
規格 Specification |
數量 Quantity |
功率 Power |
單價 Unit price |
總價 Total price |
備注 Remark |
|
混汞機 Amalgamator |
自動排礦Automatic row ore1000*1600 |
1 |
|
|
|
|
|
6S搖床 6 s Shaking table |
型號Model：3000*1620*1360mm 功率Power：1.1kw 88槽聚氨酯床面88 groove polyurethane bed surface 最佳給礦粒度Optimum ore feeding size：0.5-2mm 給料濃度Feed concentration：20-30% 處理量Handling capacity：1-1.8T/H 水流量Water-carrying capacity：0.7-1.0T/H |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
出廠價格Ex-factory price |
稅前Pre-tax￥：15053659999來電索要 元（不含稅與運費，含稅+13%Excluding tax and shipping, plus 13% including tax） |
|||||
